System Requirements¶

Pre-installation Checklist¶

The following checklist is provided for convenience and can be seen as part of an expanded site survey for NVIDIA Run:ai deployments on SuperPOD. This information needs to be collected and validated before the NVIDIA Run:ai deployment begins.

Installer Machine¶

The machine running the installation must have:

• At least 50GB of free space
• Docker installed
• Helm 3.14 or later

The configuration of BCM as well as the deployment of NVIDIA Run:ai can be performed through SSH access on the BCM headnodes:

ssh root@<IP address of BCM headnode>

Hardware Requirements¶

The following hardware requirements cover all components needed to deploy and operate NVIDIA Run:ai. By default, all NVIDIA Run:ai services run on all available nodes.

Kubernetes¶

This configuration is the minimum requirement you need to deploy Kubernetes.

NVIDIA Run:ai - System Nodes¶

This configuration is the minimum requirement you need to install and use NVIDIA Run:ai.

To designate nodes to NVIDIA Run:ai system services, follow the instructions as described in Label the NVIDIA Run:ai System Nodes.

NVIDIA Run:ai - Worker Nodes¶

NVIDIA Run:ai supports NVIDIA SuperPods built on the A100, H100, H200, and B200 GPU architectures. These systems are optimized for high-performance AI workloads at scale.

The following configuration represents the minimum hardware requirements for installing and operating NVIDIA Run:ai on worker nodes. Each node must meet these specifications:

To designate nodes to NVIDIA Run:ai workloads, follow the instructions as described in Label the NVIDIA Run:ai Worker Nodes.

Node Categories¶

In BCM, a node category is a way to group nodes that share the same hardware profile and intended role. Defining node categories allows the system to assign the appropriate software image and configurations to each group during provisioning.

Before installing NVIDIA Run:ai, make sure the necessary BCM node categories are created for:

• NVIDIA Run:ai system nodes (for example, runai-control-plane-spod)
• NVIDIA Run:ai GPU worker nodes (for example, dgx-h100-spod)
• Optional: NVIDIA Run:ai CPU worker nodes (for example, runai-cpu-workers)

Reserved IPs and Domain Configuration¶

Before installing NVIDIA Run:ai, make sure the necessary IPs (at least 2) are reserved and the domain names are properly set up. These are critical for exposing the control plane and inference services.

Reserved IP Addresses¶

Reserve at least two IP addresses from the same internal IP range:

• NVIDIA Run:ai control plane – Reserve one IP address for accessing core components such as the UI, API, and workload endpoints. This IP is not used for inference workloads.

• Inference (Knative Serving) – Reserve a second IP address specifically for serving inference workloads using Knative-based serving layer.

All reserved IPs must be reachable within your internal network and not conflict with other internal IP allocations.

Fully Qualified Domain Name (FQDN)¶

A Fully Qualified Domain Name (FQDN) is required to install the NVIDIA Run:ai control plane (e.g., runai.mycorp.local). This cannot be an IP. The domain name must be accessible inside the organization's private network.

The FQDN must point to the control plane’s reserved IP, either:

• As a DNS (A record) pointing directly to the IP
• Or, a CNAME alias to a host DNS record pointing to that same IP address

Wildcard FQDN for Inference¶

For inference workloads, configure a wildcard DNS record (*.runai-inference.mycorp.local) that maps to the reserved inference IP address. This ensures each inference workload is accessible at a unique subdomain.

TLS/SSL Certificates¶

You must have a TLS certificates that is associated with the FQDN for HTTPS access. The certificate will be installed on the Kubernetes control plane nodes as well as a Kubernetes secret for the NVIDIA Run:ai backend and the Kubernetes Ingress controller.

• The certificate CN name needs to be equal to the FQDN.
• The certificate needs to include at least one Subject Alternative Name DNS entry (SAN) for the same FQDN.
• The certificate needs to include the full trust chain (signing CA public keys).

Operating System¶

DGX OS is supported on your SuperPod and optimized for NVIDIA infrastructure. SR-IOV enables InfiniBand support at the host level. When used together with the NVIDIA Network Operator, it allows workloads to leverage InfiniBand networking for high-performance communication.

Deploy Kubernetes: Base Command Manager¶

1. From the active BCM headnode, run the following command:

   cm-kubernetes-setup

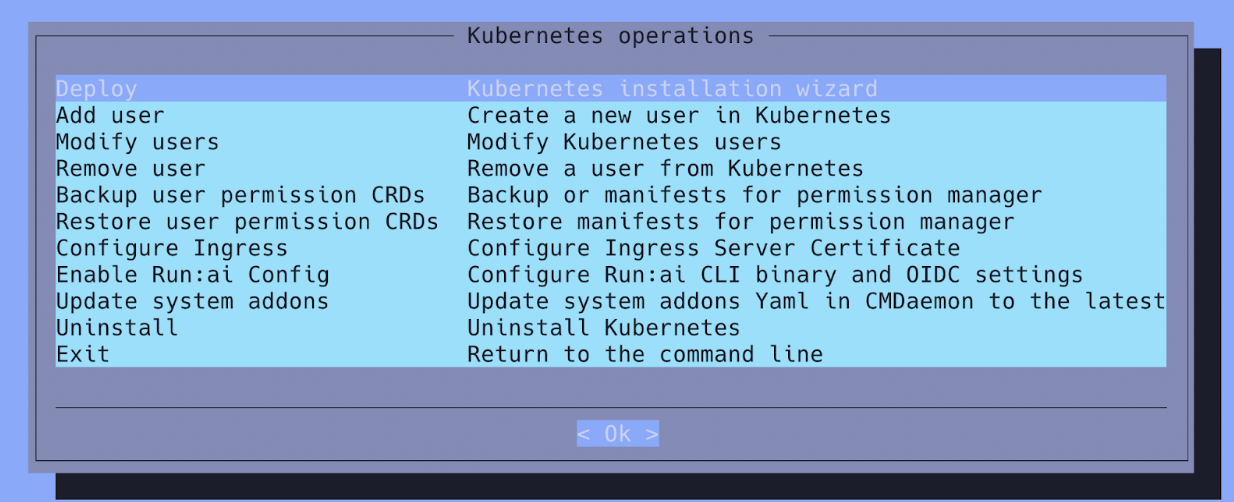

2. The following screen will pop up. Select Deploy and then click Ok:



   Note

   The number of entries in the above menu may vary.

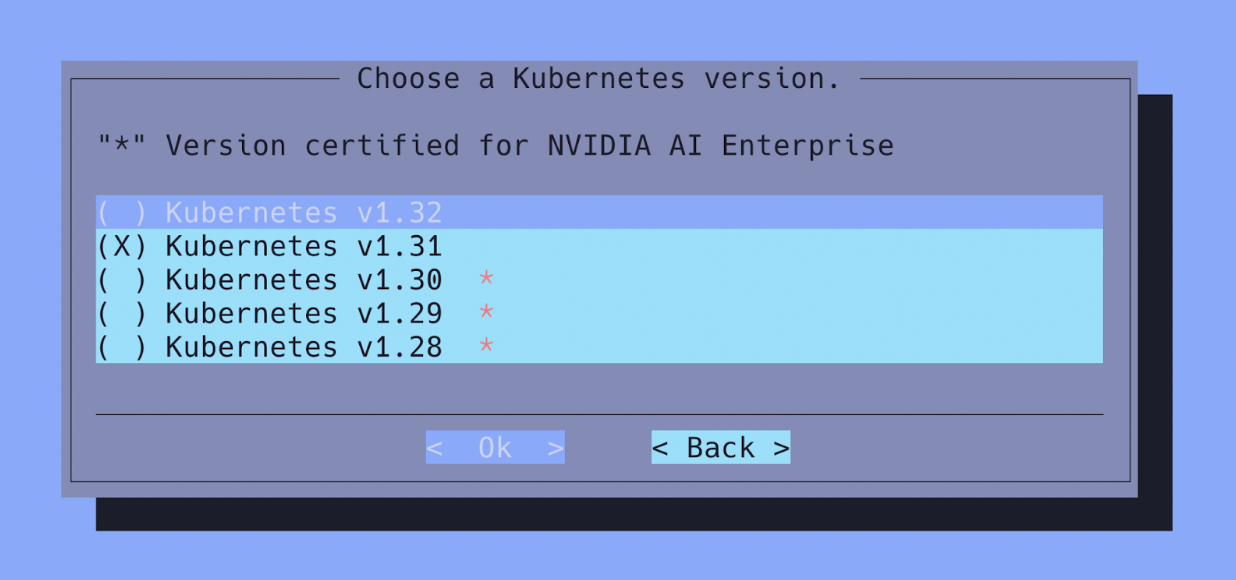

3. Select Kubernetes v1.31 and then click Ok:



4. Optional: Provide a DockerHub container registry mirror if required and then click Ok. Otherwise, leave blank and click Ok to proceed:

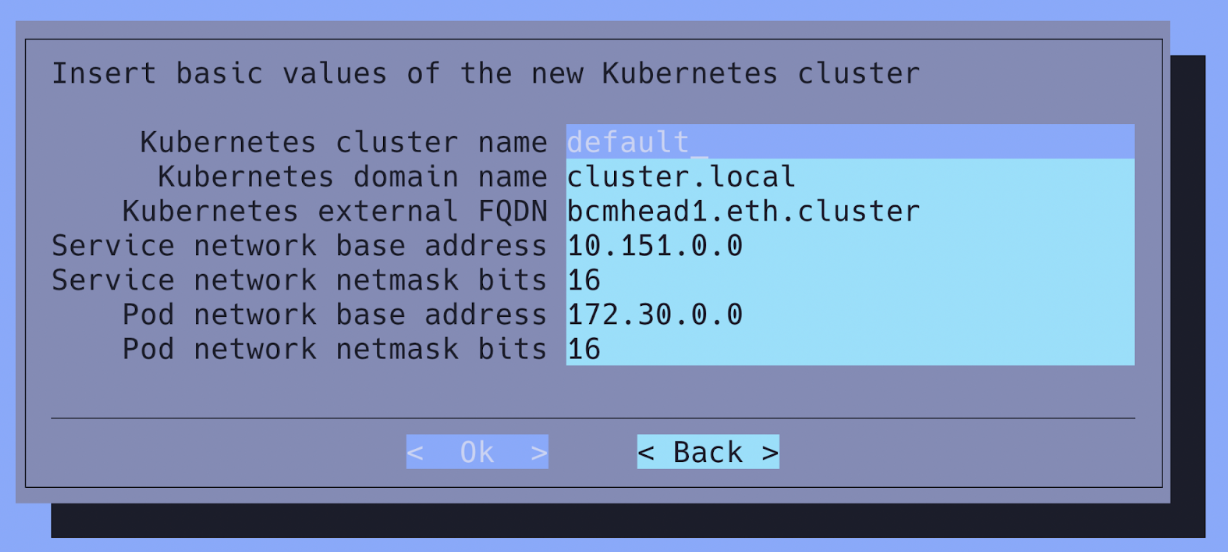

5. Set the Kubernetes networks and then click Ok. The subnets need to be in a private address space (per RFC 1918). Use the default values and only modify if necessary or in case of conflict with other internal subnets within the network. Make sure the domain names of the networks are configured correctly and modify as required to match the “Kubernetes External FQDN” using the same domain set in the FQDN section:

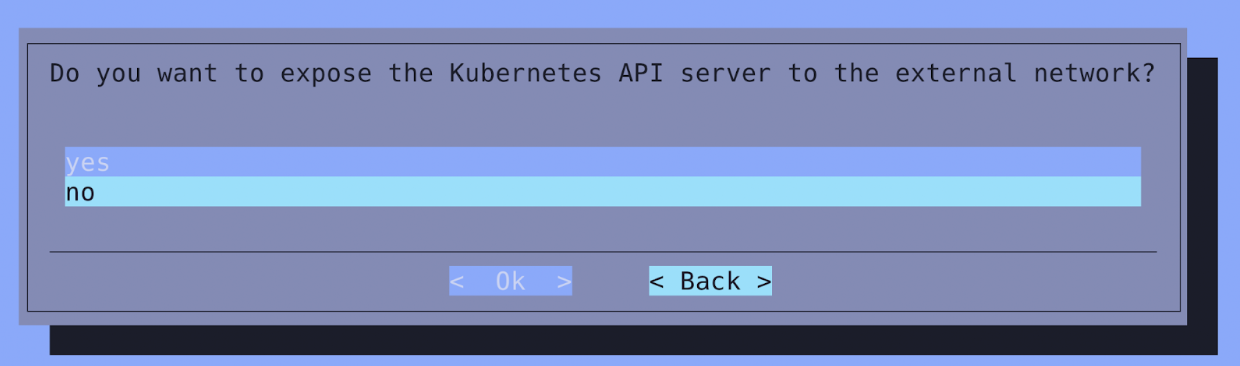

6. Select yes to expose the Kubernetes API servers to the cluster’s external network and then click Ok:

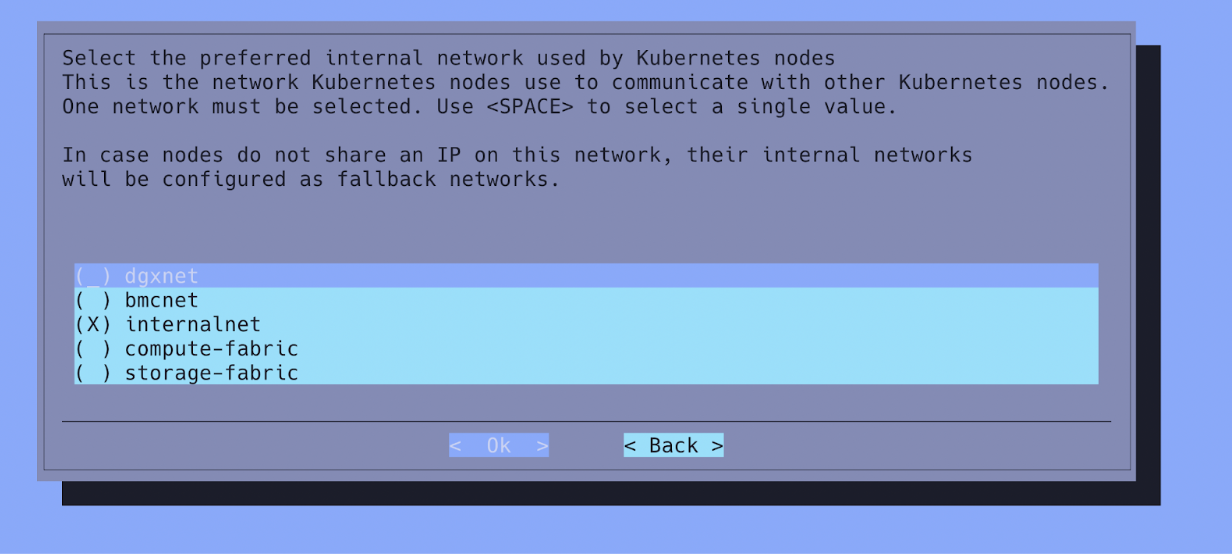

7. Select the internal network that will be used by the Kubernetes nodes and then click Ok:

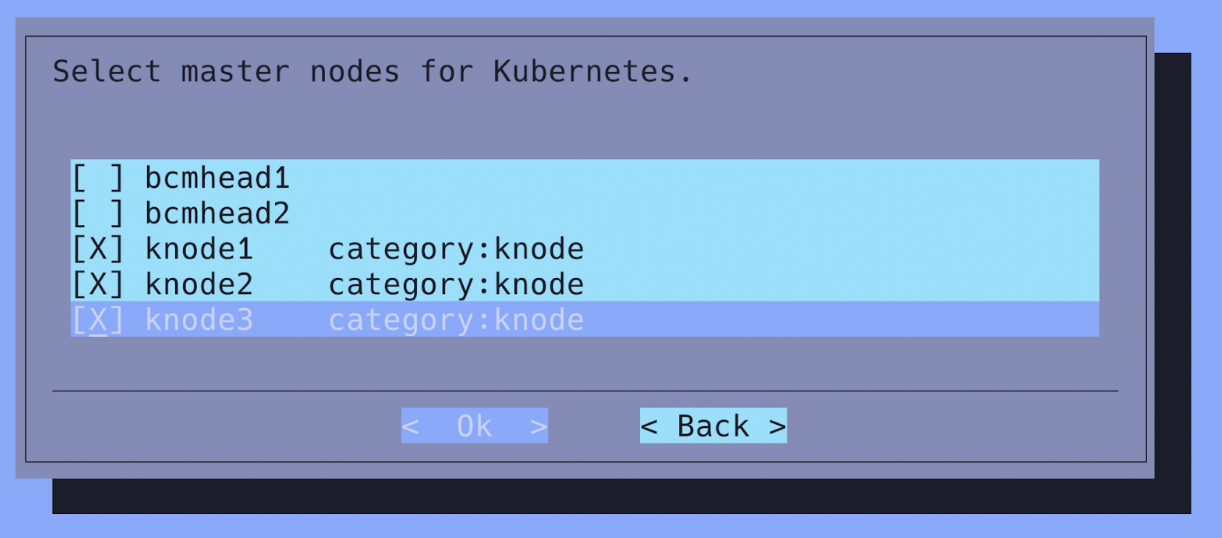

8. Select at least 3 Kubernetes master nodes and then click Ok:



   Note

   To ensure high availability and prevent a single point of failure, it is recommended to configure at least three Kubernetes master nodes in your cluster.

9. Select both the NVIDIA Run:ai system and worker node categories to operate as the Kubernetes worker nodes and then click Ok:



10. Selecting individual Kubernetes nodes is not required. Click Ok to proceed:

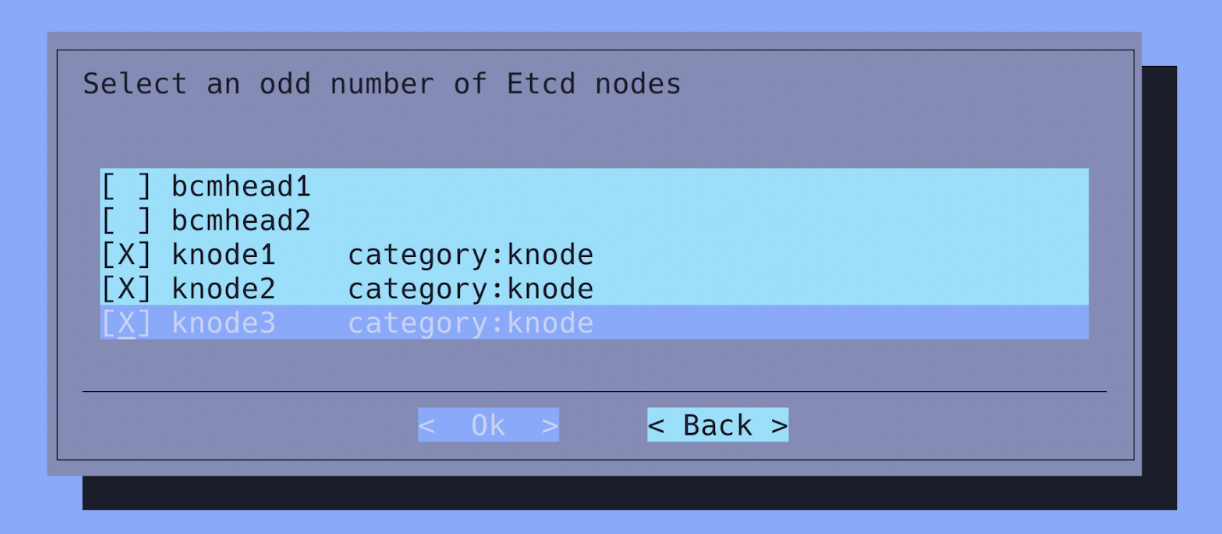

11. Select the Etcd nodes and then click Ok. Make sure to select the same three nodes as the Kubernetes master nodes (Step 8):

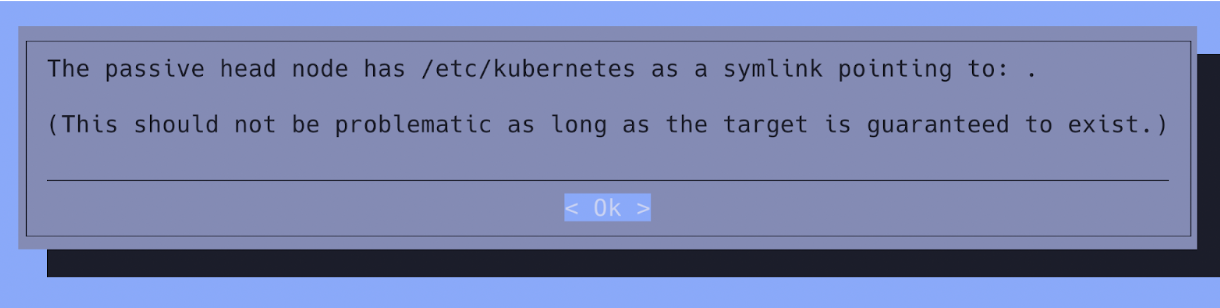

12. Ignore the following message if it appears and click Ok:

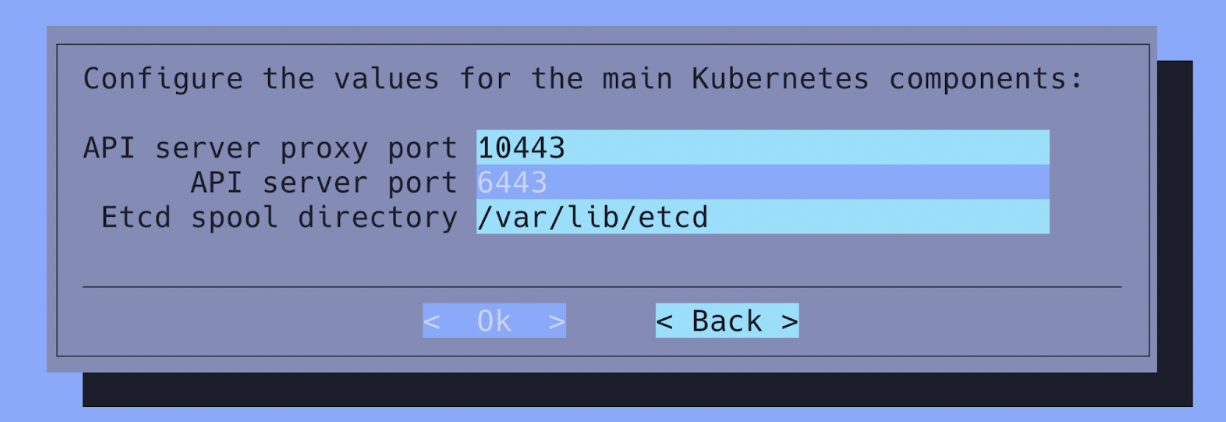

13. Set the ports as shown below and then click Ok. Do not modify the Etcd spool directory:

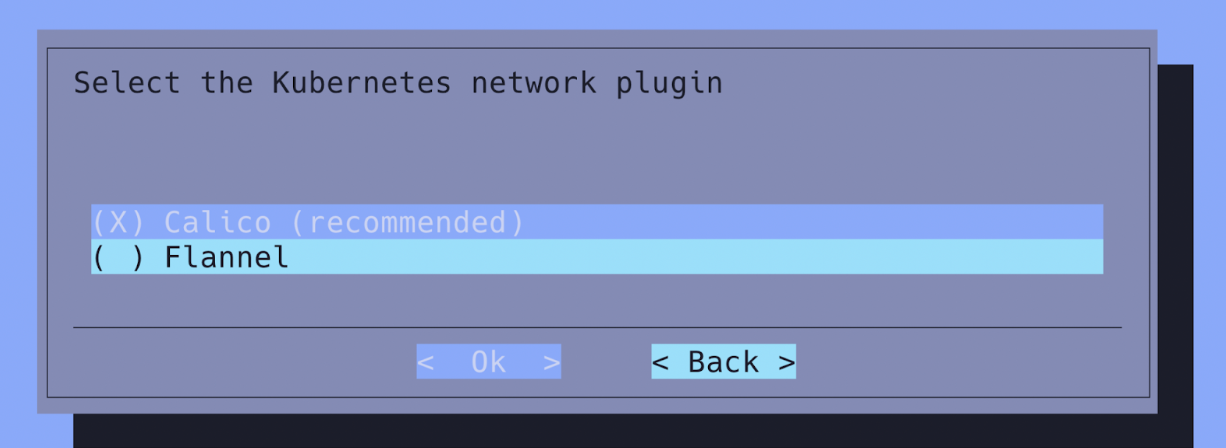

14. Select Calico as the Kubernetes network plugin and then click Ok:

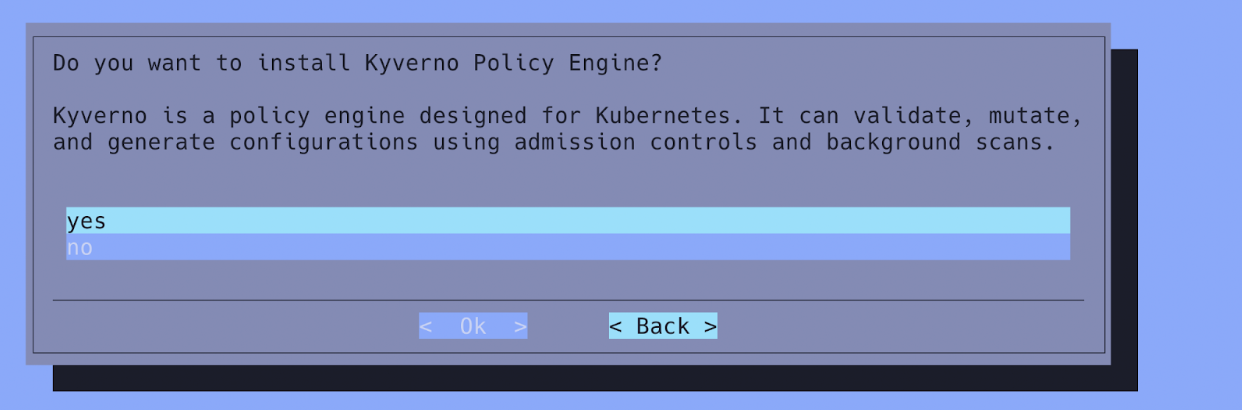

15. Do not install Kyverno during the initial deployment. It can always be enabled at a later stage. Select no and then click Ok:



Operators¶

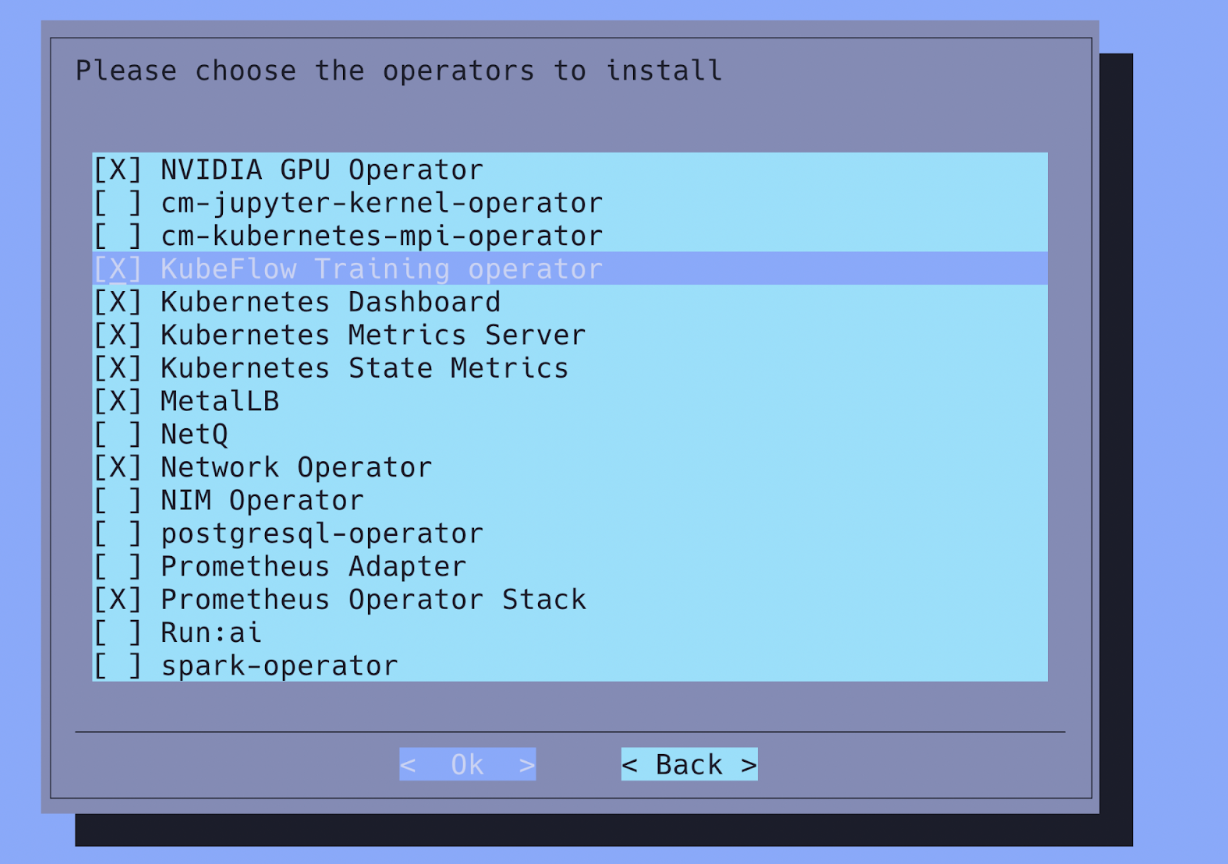

Select the following Operators and then click Ok:

NVIDIA GPU Operator¶

NVIDIA Run:ai supports versions 22.9 to 25.3.

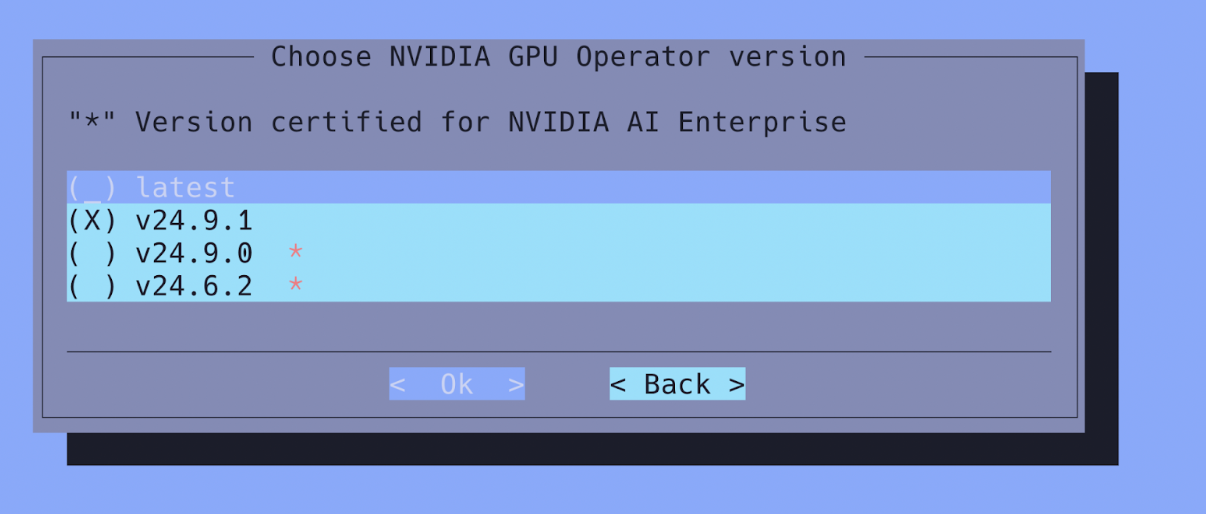

1. Select the required NVIDIA GPU Operator version and then click Ok:

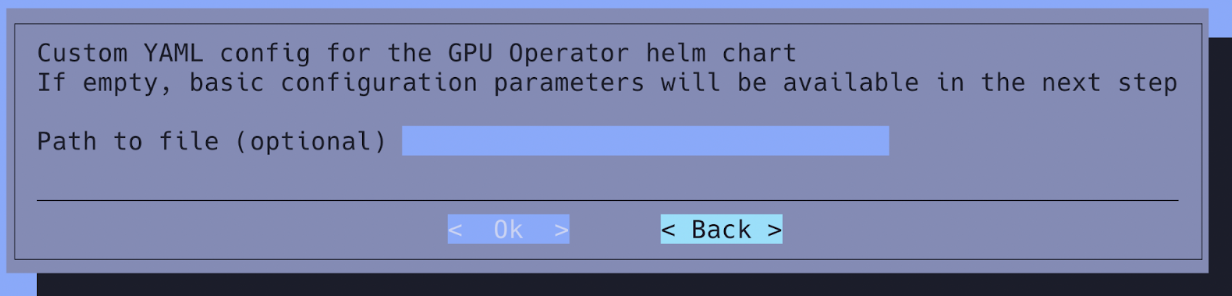

2. Leave the YAML configuration file path empty and then click Ok:

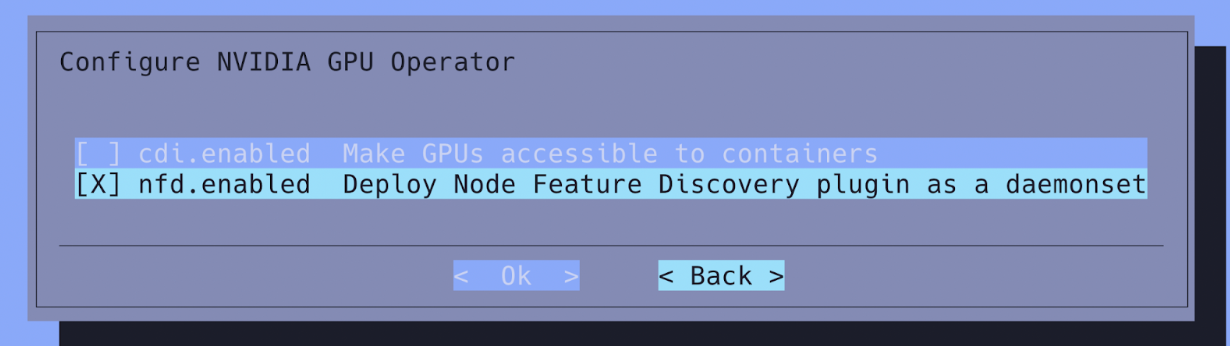

3. Configure the NVIDIA GPU Operator by selecting the following configuration parameters and then click Ok:

Network Operator¶

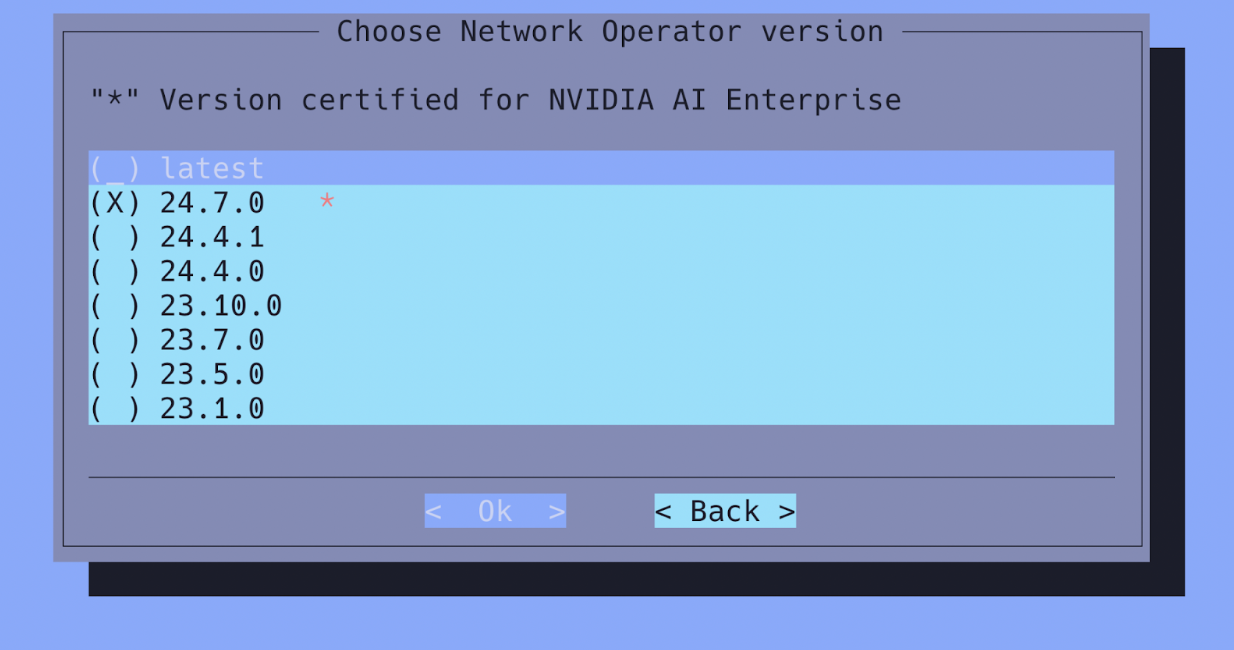

1. Select Network Operator v24.7.0 and then click Ok:



2. Create a YAML file with the required Helm values.

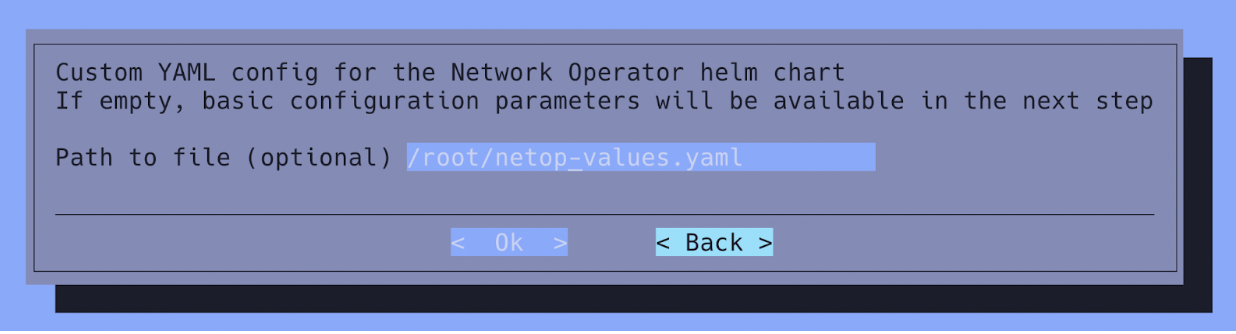

3. Add the path to the YAML file and then click Ok:

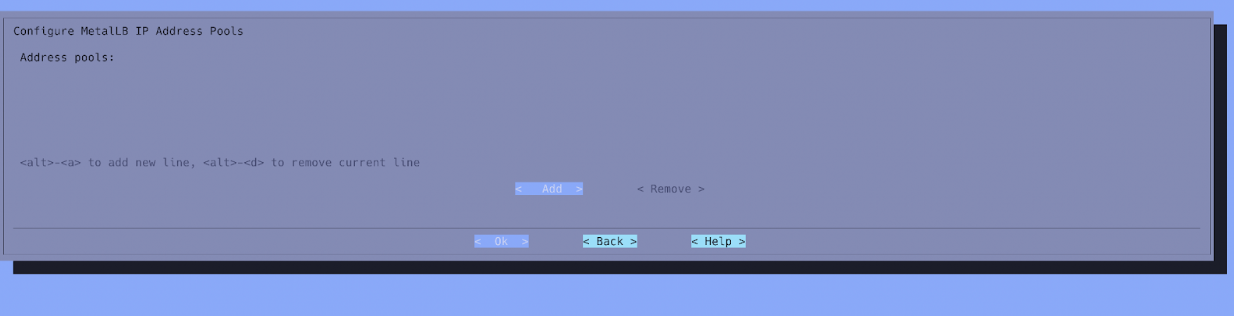

4. Do not add any MetalLB address pools at this point. Click Ok to proceed:



Kubernetes Ingress Controller¶

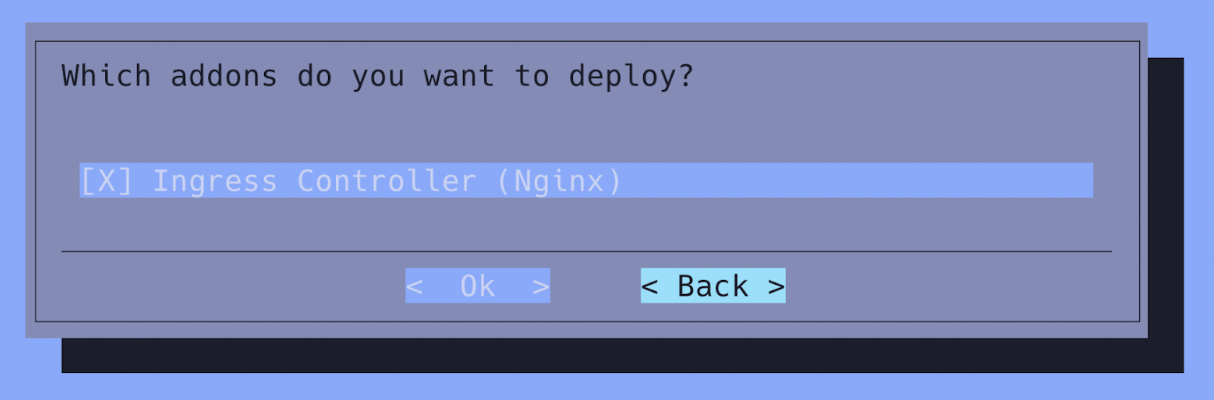

1. Select Ingress Controller (Nginx) and then click Ok:

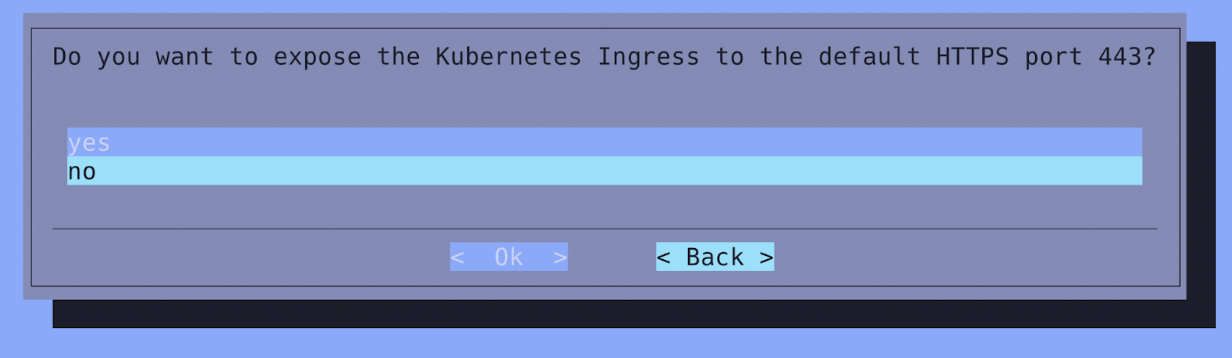

2. Select yes when asked to expose the Ingress service over port 443 and then click Ok:

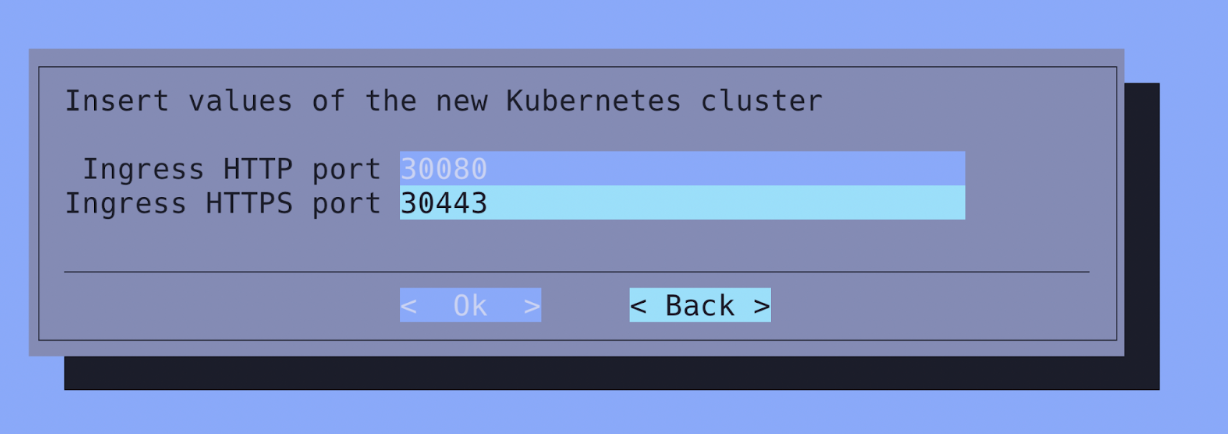

3. Keep the Ingress HTTPS port to 30443 (default value) and then click Ok:



Permissions Manager¶

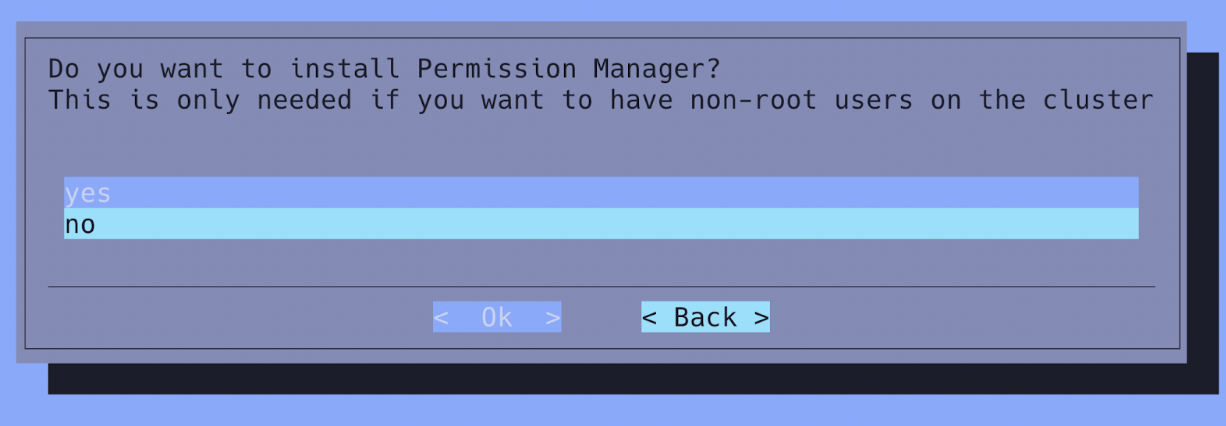

Click yes to install the BCM Kubernetes permissions manager and then click Ok:

Storage Class¶

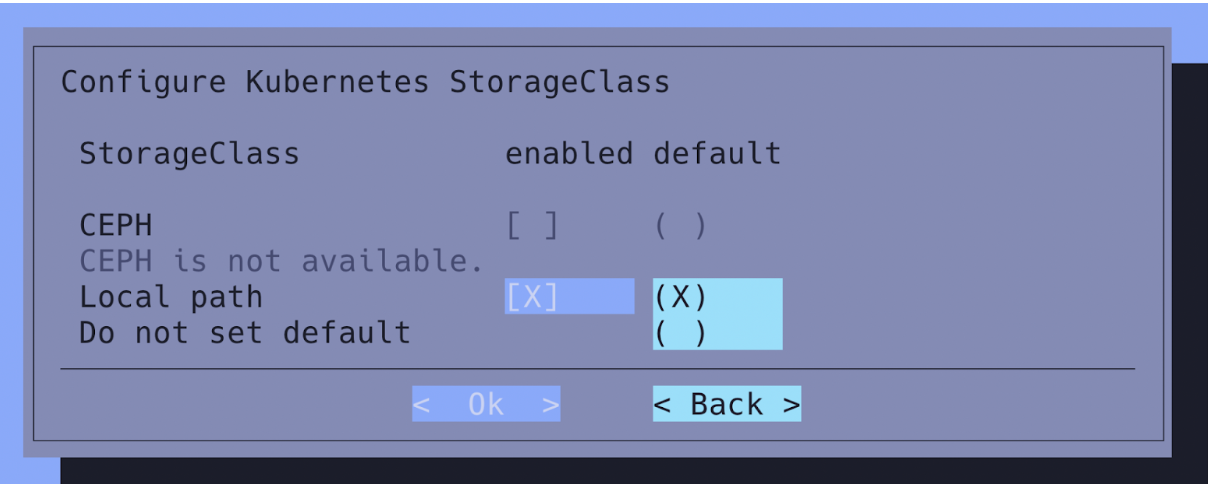

1. Select Local path as the Kubernetes StorageClass and then click Ok:

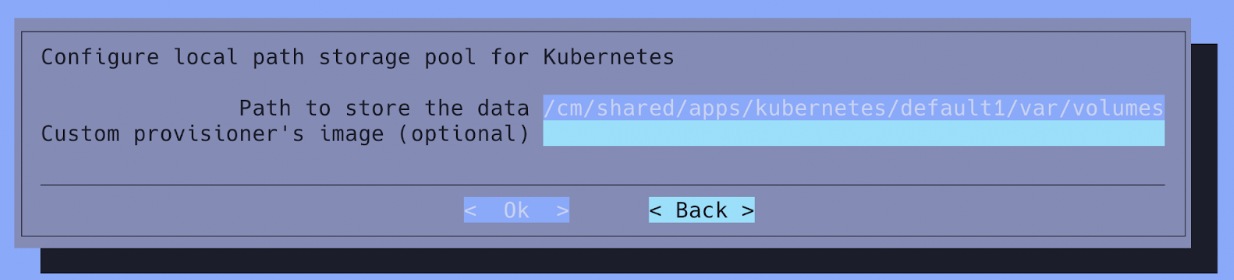

2. Put the storage class on the shared storage (/cm/shared – keep defaults) and then click Ok:



Save your Configuration¶

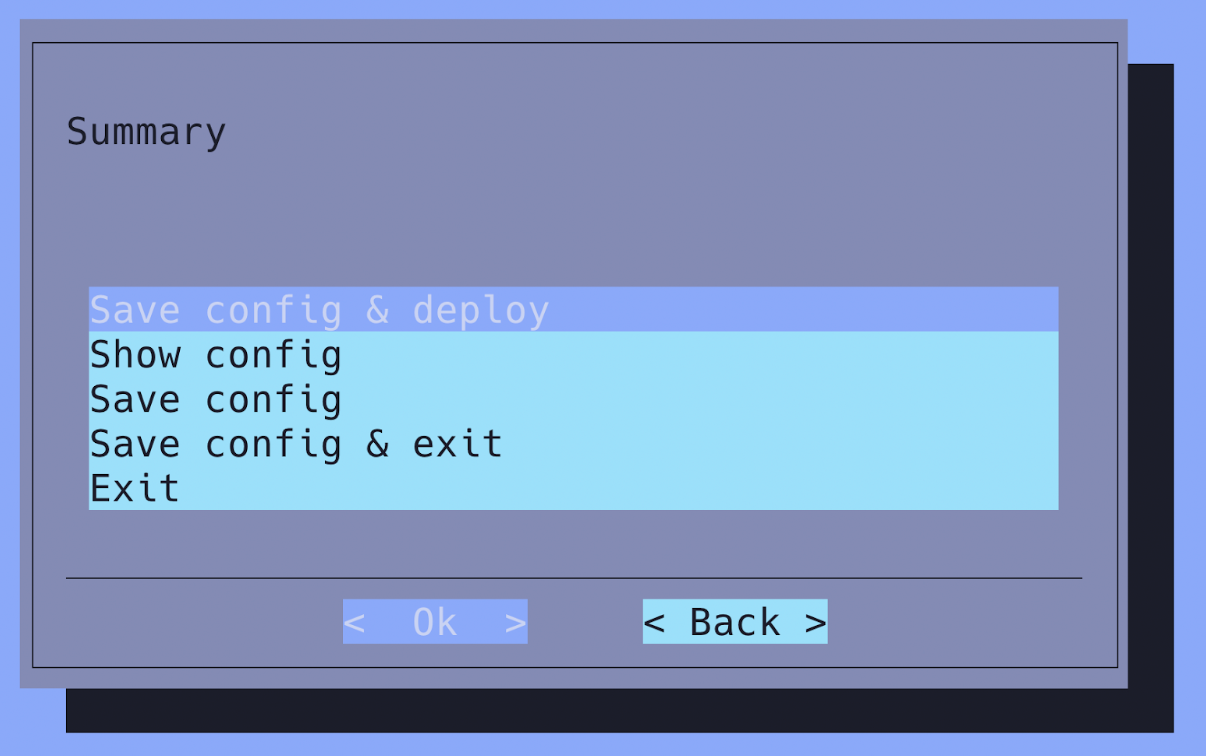

Select Save config & deploy and then click Ok:

Start Deployment¶

At this point the deployment will start. Half way through the deployment all nodes that are members of the Kubernetes cluster will be rebooted and the installer will wait up to 60 minutes for all nodes to come back online.

Configure BCM Kubernetes for NVIDIA Run:ai¶

Label the NVIDIA Run:ai System Nodes¶

Label the system nodes to ensure that system services are scheduled on designated system nodes.

cmsh
kubernetes
labelsets
add runai-control-plane
append categories runai-control-plane
append labels node-role.kubernetes.io/runai-system=true
commit

Label the NVIDIA Run:ai Worker Nodes¶

1. Label the nodes - GPU workers:

   cmsh
   kubernetes
   labelsets
   add runai-gpu-worker
   append categories dgx-h100-spod
   append labels node-role.kubernetes.io/runai-gpu-worker=true
   commit


2. Optional: Label the nodes - CPU workers:

   cmsh
   kubernetes
   labelsets
   add runai-cpu-worker
   append categories runai-cpu-workers
   append labels
   node-role.kubernetes.io/runai-cpu-worker=true
   commit


Create the NVIDIA Run:ai Namespaces¶

Create the following Kubernetes namespaces:

kubectl create ns runai-backend
kubectl create ns runai

Expose the NVIDIA Run:ai Endpoint - MetalLB¶

NVIDIA Run:ai is exposed through the MetalLB load balancer/Route Advertiser. This includes the main Kubernetes Ingress for the NVIDIA Run:ai control plane and the Kourier Ingress used for Knative Serving. Make sure a reserved range of IP addresses is available as described in Reserved IPs and Domain Configuration and MetalLB is deployed as part of the Kubernetes installation.

1. Configure the Kubernetes API proxy with strict ARP validation:

   kubectl get configmap kube-proxy -n kube-system -o yaml | \
   sed -e "s/strictARP: false/strictARP: true/" | \
   kubectl apply -f - -n kube-system


2. Create a new appGroup application in BCM:

   root@bcmhead1:~# cmsh
   [bcmhead1]% kubernetes
   [bcmhead1->kubernetes[dra]]% appgroups
   [bcmhead1->kubernetes[dra]->appgroups]% use system
   [bcmhead1->kubernetes[dra]->appgroups[system]]% applications
   [bcmhead1->kubernetes[dra]->appgroups[system]->applications]% add ingress-metallb
   [bcmhead1->kubernetes*[dra*]->appgroups*[system*]->applications*[ingress-metallb*]]% set config /root/ingress-metallb.yaml
   [bcmhead1->kubernetes*[dra*]->appgroups*[system*]->applications*[ingress-metallb*]]% commit


3. Create the YAML configuration to define the ingress IP pool and Layer 2 advertisement. You will need to substitute the IP address with the reserved IP address.

Configure Kubernetes Ingress Controller¶

Scale up the Ingress Deployment¶

For high availability, increase the number of replicas from 1 to 3:

# cmsh
[bcmhead1->device]% kubernetes
[bcmhead1->kubernetes[dra]]% appgroups
[bcmhead1->kubernetes[dra]->appgroups]% use system
[bcmhead1->kubernetes[dra]->appgroups[system]]% applications
[bcmhead1->kubernetes[dra]->appgroups[system]->applications]% use ingress_controller
[bcmhead1->kubernetes[dra]->appgroups[system]->applications[ingress_controller]]% environment
[bcmhead1->kubernetes[dra]->appgroups[system]->applications[ingress_controller]->environment]% set replicas  value 3
[bcmhead1->kubernetes*[dra*]->appgroups*[system*]->applications*[ingress_controller*]->environment*]% commit

Configure the NGINX Proxy TLS Certificates¶

This process sets up TLS certificates for the Run:ai control plane FQDN.

Follow these steps on the active BCM headnode to configure the NGINX Ingress controller with your signed TLS certificate:

1. From the active BCM headnode, run the following command:

   cm-kubernetes-setup

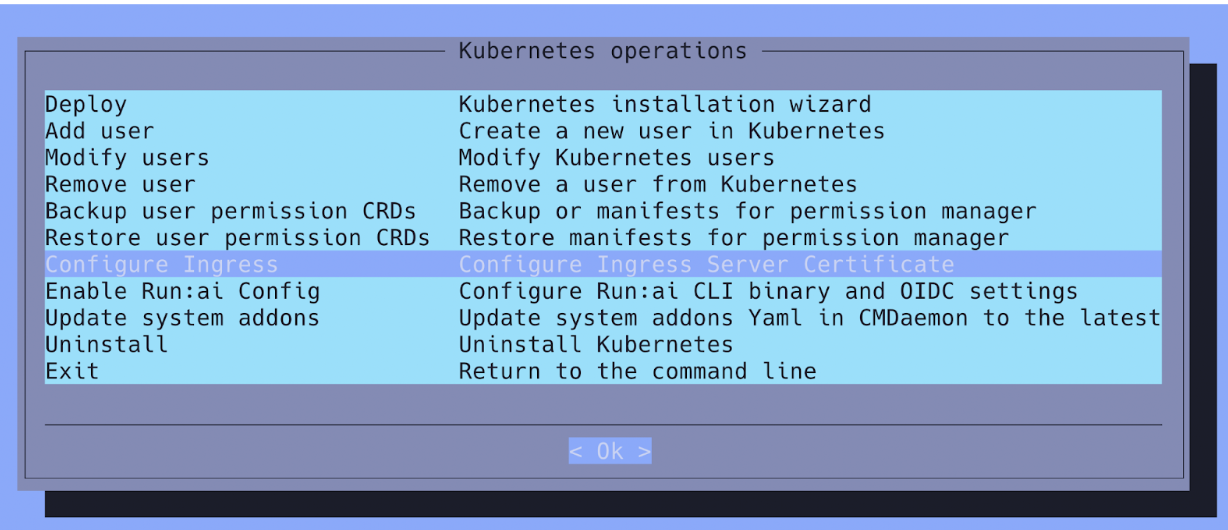

2. The following screen will pop up. Select Configure Ingress and then click Ok:

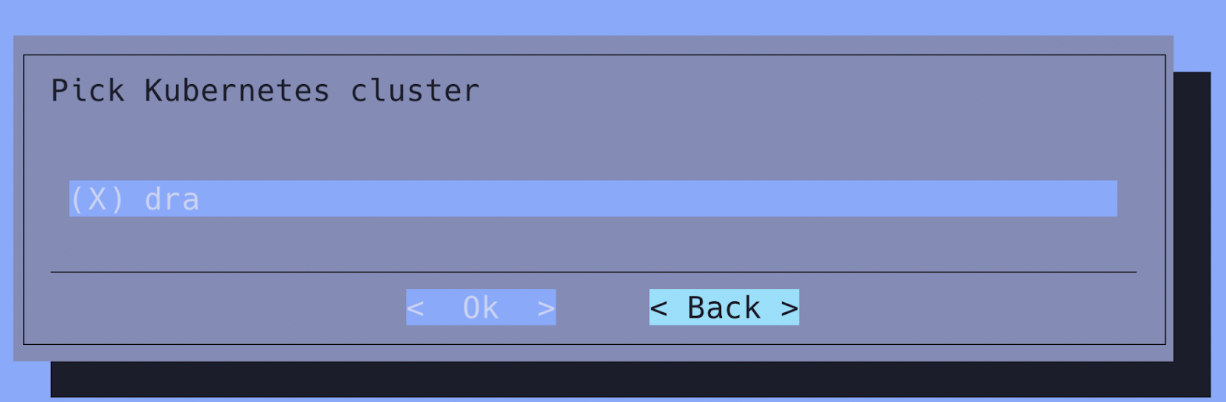

3. Select the Kubernetes cluster and then click Ok:

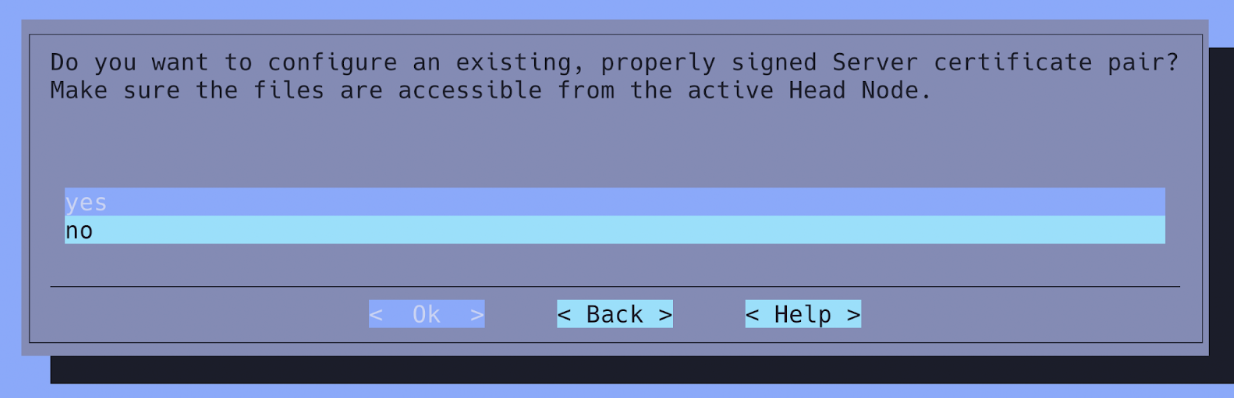

4. Select yes when asked to provide signed certificates and then click Ok:

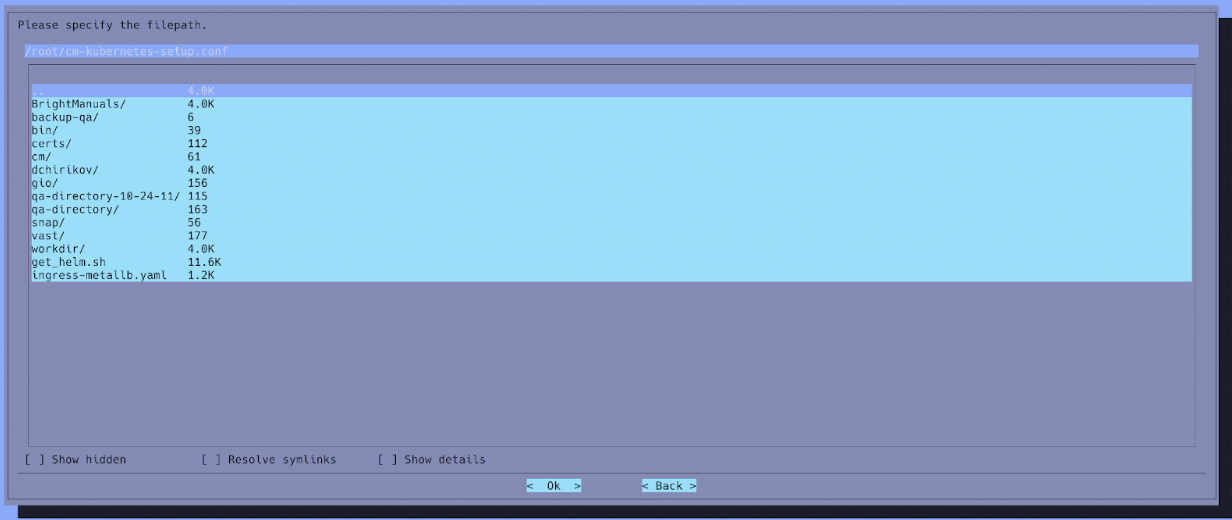

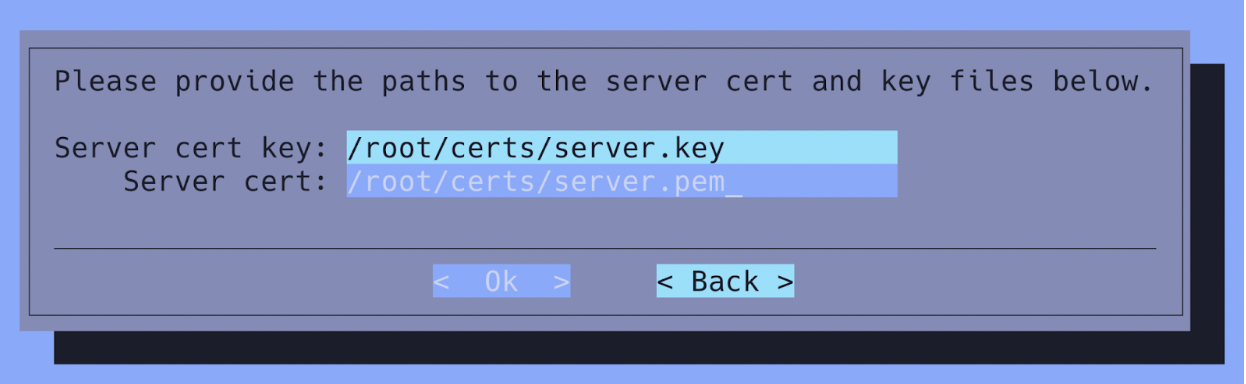

5. Enter the path to the private key and PEM certificate and then click Ok. See TLS Certificate for more details:



Confifure the NGINX with reserved IP for MetalLB¶

Patch the ingress-nginx service. Assign the reserved control plane IP address to the ingress controller:

    kubectl -n ingress-nginx patch svc ingress-nginx-controller \
    --type='merge' \
    -p '{"spec": {"type": "LoadBalancer", "loadBalancerIP": "<RESERVED-IP>"}}'

Configure the Network Operator¶

The default deployment of the Network Operator installs the boiler-plate services, but does not initialize the SR-IOV and secondary network plugins. The following CRD resources have to be created in the exact order as below:

• SR-IOV Network Policies for each NVIDIA InfiniBand NIC
• An nvIPAM IP address pool
• SR-IOV InfiniBand networks

The above CRD YAML specs can be downloaded from the following Gitlab repo: https://gitlab-master.nvidia.com/kuberpod/runai-deployment-assets. TBD: Should we add these yaml files

1. Increase the number of simultaneous updates by the Network Operator:

   kubectl patch sriovoperatorconfigs.sriovnetwork.openshift.io -n network-operator default --patch '{ "spec": { "maxParallelNodeConfiguration": 0 } }' --type='merge'


   and

   kubectl patch sriovoperatorconfigs.sriovnetwork.openshift.io -n network-operator default --patch '{ "spec": { "featureGates": { "parallelNicConfig": true  } } }' --type='merge'


   2. Create the SR-IOV network node policies:

   kubectl apply -f sriov-network-node-policy.yaml


   Adjust the number of Virtual Function (numVfs) as needed.

2. Create an IPAM IP Pool:

   kubectl apply -f nvipam-ip-pool.yaml


3. Create the SR-IOV IB networks:

   kubectl apply -f sriov-ib-network.yaml


Certificates Setup for NVIDIA Run:ai¶

TLS Certificate¶

You must have TLS certificate that is associated with the FQDN for HTTPS access. Create a Kubernetes Secret named runai-backend-tls in the runai-backend namespace and include the path to the TLS --cert and its corresponding private --key by running the following:

kubectl create secret tls runai-backend-tls -n runai-backend \
  --cert /path/to/fullchain.pem  \ # Replace /path/to/fullchain.pem with the actual path to your TLS certificate
  --key /path/to/private.pem # Replace /path/to/private.pem with the actual path to your private key

Local Certificate Authority¶

A local certificate authority serves as the root certificate for organizations that cannot use publicly trusted certificate authority if external connections or standard HTTPS authentication is required. Follow the below steps to configure the local certificate authority.

1. Add the public key to the runai-backend namespace:

   kubectl -n runai-backend create secret generic runai-ca-cert \
       --from-file=runai-ca.pem=<ca_bundle_path>


2. Add the public key to the runai namespace:

   kubectl -n runai create secret generic runai-ca-cert \
       --from-file=runai-ca.pem=<ca_bundle_path>
   kubectl label secret runai-ca-cert -n runai run.ai/cluster-wide=true run.ai/name=runai-ca-cert --overwrite


3. When installing the control plane and cluster, make sure the following flag is added to the helm command --set global.customCA.enabled=true.

Additional Software Requirements¶

Additional NVIDIA Run:ai capabilities, Distributed Training and Inference require additional Kubernetes applications (frameworks) to be installed.

Distributed Training¶

Distributed training enables training of AI models over multiple nodes. This requires installing a distributed training framework on the cluster. The following frameworks are supported:

• TensorFlow
• PyTorch
• XGBoost
• MPI

All are part of the Kubeflow Training Operator. NVIDIA Run:ai supports Training Operator version 1.7. The Kubeflow Training Operator gets installed as part of the BCM Kubernetes Deployment.

The Kubeflow Training Operator is packaged with MPI version 1.0 which is not supported by NVIDIA Run:ai. You need to separately install MPI v2beta1:

1. Run the below to install MPI v2beta:

   kubectl create -f https://raw.githubusercontent.com/kubeflow/mpi-operator/v0.6.0/deploy/v2beta1/mpi-operator.yaml


2. Disable MPI in the Training operator by running:

   kubectl patch deployment training-operator -n kubeflow --type='json' -p='[{"op": "add", "path": "/spec/template/spec/containers/0/args", "value": ["--enable-scheme=tfjob", "--enable-scheme=pytorchjob", "--enable-scheme=xgboostjob"]}]'


3. Run:

   kubectl delete crd mpijobs.kubeflow.org


4. Install MPI v2beta1 again:

   kubectl create -f https://raw.githubusercontent.com/kubeflow/mpi-operator/v0.6.0/deploy/v2beta1/mpi-operator.yaml
   # Ignore any errors in the above command
   kubectl replace -f https://raw.githubusercontent.com/kubeflow/mpi-operator/v0.6.0/deploy/v2beta1/mpi-operator.yaml


Inference¶

Inference enables serving of AI models. This requires the Knative Serving framework to be installed on the cluster and supports Knative versions 1.10 to 1.15.

Follow the Installing Knative instructions. After installation:

1. configure Knative to use the NVIDIA Run:ai Scheduler and features, by running:

kubectl patch configmap/config-autoscaler \
  --namespace knative-serving \
  --type merge \
  --patch '{"data":{"enable-scale-to-zero":"true"}}' && \
kubectl patch configmap/config-features \
  --namespace knative-serving \
  --type merge \
  --patch '{"data":{"kubernetes.podspec-schedulername":"enabled","kubernetes.podspec-affinity":"enabled","kubernetes.podspec-tolerations":"enabled","kubernetes.podspec-volumes-emptydir":"enabled","kubernetes.podspec-securitycontext":"enabled","kubernetes.containerspec-addcapabilities":"enabled","kubernetes.podspec-persistent-volume-claim":"enabled","kubernetes.podspec-persistent-volume-write":"enabled","multi-container":"enabled","kubernetes.podspec-init-containers":"enabled"}}'

1. Patch Knative Kourier service. Assign the reserved IP address and DNS for inference workloads to the Knative ingress service:

   # Replace knative.example.com with your FQDN for Inference (without the wildcard)
   kubectl patch configmap/config-domain --namespace knative-serving --type merge --patch '{"data":{"<knative.example.com>":""}}'

   kubectl -n kourier-system patch svc kourier \
   --type='merge' \
   -p '{"spec": {"type": "LoadBalancer", "loadBalancerIP": "<RESERVED-IP>"}}'


Knative Autoscaling¶

NVIDIA Run:ai allows for autoscaling a deployment according to the below metrics:

• Latency (milliseconds)
• Throughput (requests/sec)
• Concurrency (requests)

Using a custom metric (for example, Latency) requires installing the Kubernetes Horizontal Pod Autoscaler (HPA). Use the following command to install. Make sure to update the {VERSION} in the below command with a supported Knative version.

kubectl apply -f https://github.com/knative/serving/releases/download/knative-{VERSION}/serving-hpa.yaml
